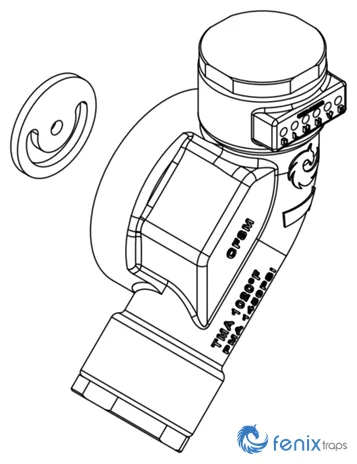

Built for low flow
A compact trap for drainage and tracing that fits a universal connector.
No moving parts
Works on a hydrodynamic principle with sized venturis. There is no disc, float or bimetal to wear out.
Universal connector
Designed to fit a universal connector, with its own connection gasket (G-7).
In-line maintenance
Integral strainer and removable nozzle. The body does not have to be removed for maintenance.
CF8M stainless steel
CF8M cast body and 316 stainless steel nozzle cap, with 100 barg PMA.
Steam line drainage
Drip legs on headers and distribution lines, where condensate arrives at low, continuous flow rates.
Steam tracing
Steam tracers on process lines, instruments and tanks that must be kept at temperature.
Compare the connections
The versions share the design and main components. The connection changes, and with it the operating limits.
Configuration
Choose the options to see the dimensions, weight and limits of your trap.
The drain valve is an accessory that allows easy cleaning of the strainer. It is recommended for traps operating at no more than 20 barg.
- Connection
- Universal connector
- Dimension A
- 4.17 in · 106 mm
- Dimension B
- 4.72 in · 120 mm
- Dimension C
- 2.05 in · 52 mm
- Approx. weight
- 3.2 lb · 1.45 kg
- PMO
- 435 psig at 500 °F
- Option
- No drain valve

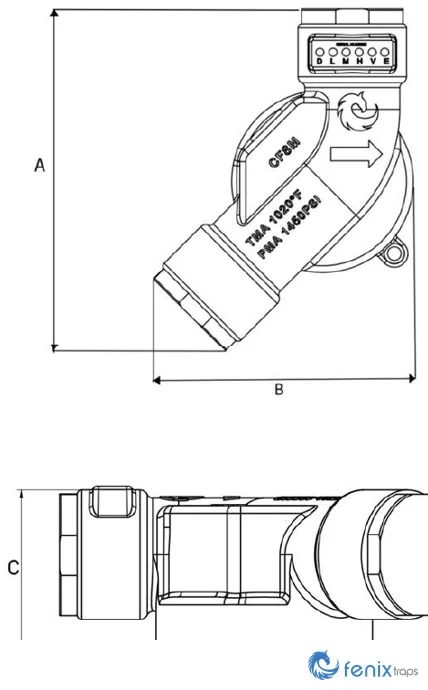

Dimensions
Dimensions and approximate weight for each size.
| Size | A | B | C | Approx. weight |
|---|---|---|---|---|
| QF | 4.17 in106 mm | 4.72 in120 mm | 2.05 in52 mm | 3.2 lb1.45 kg |
Operating range
Pressure and temperature limits with the saturated steam curve for reference. Enter your pressure to check your application.
Check your application
Enter your line saturated steam pressure. We calculate the saturation temperature and compare it with the operating area.
- Saturation temperature
- 364 °F · 184 °C
- Allowable pressure at that temperature
- 435 psig

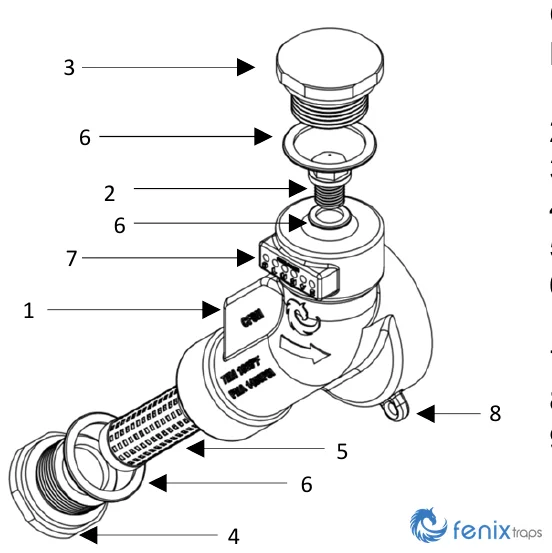

Components and materials
CF8M cast body, 304L nozzle and 316 nozzle cap.

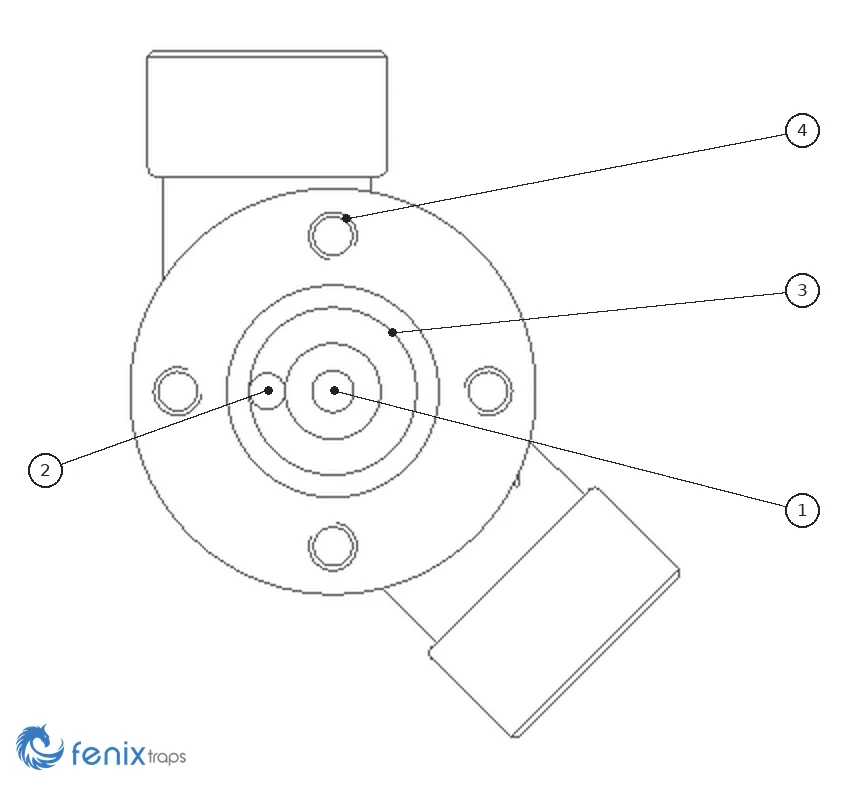

Universal connector
The QF is mounted on this connector, which stays installed in the pipework. The trap is fixed to its face with four bolts, and the G-7 connection gasket seals between both surfaces.
- Central port
- Side port
- Sealing face with concentric grooves (G-7 connection gasket)
- Tapped holes to fix the trap (4)
| No. | Part | Material |
|---|---|---|
| 1 | Cast stainless steel body | CF8M |
| 2 | Removable nozzle | 304L stainless steel |
| 3 | Nozzle cap | 316 stainless steel |
| 4 | Strainer cap | 304L stainless steel |
| 5 | Strainer filter | Stainless steel mesh |
| 6 | Gaskets | Graphite with stainless steel reinforcement |
| 7 | Loop ¹ | — |
| 8 | Nipple ² | 304L stainless steel |
| 9 | Drain valve ² | 304L stainless steel |
¹ For an identification tag. ² Optional accessory for easy strainer cleaning, recommended up to 20 barg.
Spare parts
| Part | Code |
|---|---|
| Strainer filter | F-S |
| Cap gasket | G-4 |
| Nozzle gasket | G-1 |
| Connection gasket | G-7 |
Frequently asked questions
What maintenance and engineering teams ask us most about the QF trap.
What applications is the Fenix QF steam trap designed for?
Low-flow applications such as line drainage and steam tracing, on installations with a universal connector.
What is the maximum operating pressure of the QF?
QF: 435 psig (30 barg) at 500 °F.
What sizes and connections does the QF come in?
Connections: Universal connector.
How is the QF maintained?
The integral strainer and the nozzle come out without removing the body from the line. The optional drain valve allows easy strainer cleaning (recommended up to 20 barg).
What warranty does the Fenix QF trap have?
The Fenix QF trap has a 15-year warranty. Its strainer, designed and made by Fenix, is also guaranteed for 15 years.
Why does the trap strainer matter?
Particles carried by the steam, such as rust, weld slag and scale, can block the nozzle. A robust, efficient strainer keeps the trap working properly. That is why Fenix designed and makes its own strainer and guarantees it for 15 years.
What is the drain valve for?
It is an optional accessory that allows easy strainer cleaning. When opened, line pressure blows out the sediment held in the screen without opening the cap. It is recommended for traps operating at no more than 20 barg.
What spare parts are available for the QF?
Strainer filter (F-S), Cap gasket (G-4), Nozzle gasket (G-1), Connection gasket (G-7).
Fenix strainer, designed and made by Fenix
A trap only works well if the condensate reaching it is clean. That is why Fenix designed and makes its own strainer, and guarantees it for 15 years, the same as the trap.
Protects the nozzle and venturis
Rust, weld slag and scale carried by the steam are among the most common causes of trap failure. The strainer holds them back before they reach the nozzle.
Robust by design
Stainless steel screen housed in the CF8M cast body, with a 304L stainless steel strainer cap.
Cleaning without removing the trap
The screen comes out through its cap; the trap body stays installed in the line.
Optional drain valve
An accessory that allows easy strainer cleaning: when opened, line pressure blows out the sediment held in the screen without opening the cap. Recommended for traps operating at no more than 20 barg.
Trap and strainer from one maker
Both are designed and made by Fenix, and both carry a 15-year warranty. No generic third-party strainer.
- Screen
- Stainless steel
- Body and cap
- Integral to the CF8M body · 304L cap
- Spare (screen)
- F-S
- Drain valve
- Optional (recommended up to 20 barg)
- Warranty
- 15 years, same as the trap
