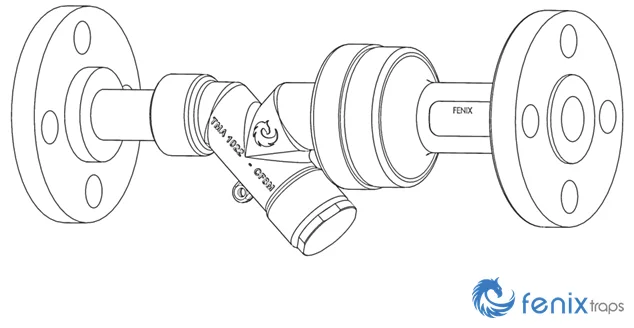

Built for process
Flanged process trap, designed for its location and with a high integrity strainer.
No moving parts
Works on a hydrodynamic principle with sized venturis. There is no disc, float or bimetal to wear out.
Designed for its location
ANSI or PN flanges of any rating, in a standard length or custom up to 500 mm.
Removable body
High integrity strainer. The body comes out for maintenance without removing the whole assembly.
Welded and tested to ASME
Manufactured and tested to ASME standards.
Shell and tube heat exchangers
Condensate discharge from the steam side under variable load.
Air heaters
Steam coils and batteries heating process air.
Calorifiers and reboilers
Process equipment with variable steam demand.
Cooking vessels
Jacketed vessels with heating cycles.
Compare the connections
The versions share the design and main components. The connection changes, and with it the operating limits.
Configuration
Choose the options to see the dimensions, weight and limits of your trap.
Custom up to 19.69 in.
The drain valve is an accessory that allows easy cleaning of the strainer. It is recommended for traps operating at no more than 20 barg.
- Size
- ½" (DN15)
- Connection
- ANSI 300
- Dimension A
- 12.00 in · 305 mm (standard)
- Dimension B
- 4.53 in · 115 mm
- Dimension C
- 7.40 in · 188 mm
- Approx. weight
- 6.8 lb · 3.1 kg
- PMO
- 700 psig at 200 °F
- Option
- No drain valve

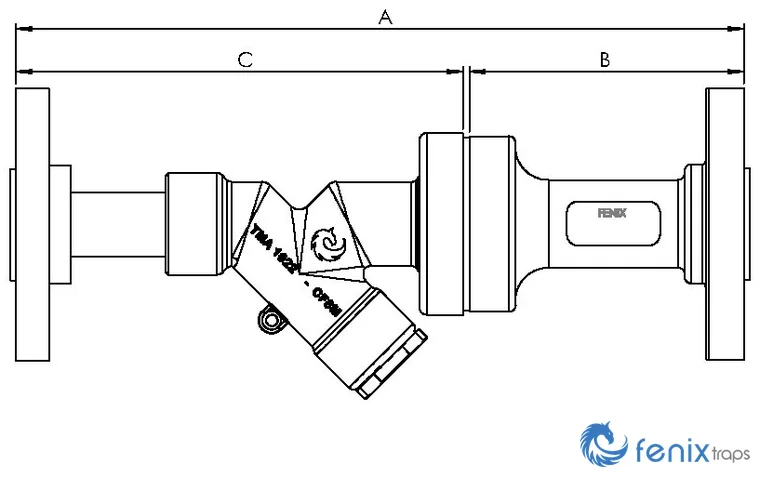

Dimensions
Dimensions and approximate weight for each size.
| Size | A ** | B | C | Approx. weight * |
|---|---|---|---|---|
| ½" (DN15) | 12.00 in305 mm | 4.53 in115 mm | 7.40 in188 mm | 6.8 lb3.1 kg |
| ¾" (DN20) | 12.00 in305 mm | 4.53 in115 mm | 7.40 in188 mm | 9 lb4.1 kg |
| 1" (DN25) | 12.00 in305 mm | 4.53 in115 mm | 7.40 in188 mm | 9.7 lb4.4 kg |
* Weight with ANSI 300 flanges. ** Custom up to 19.69 in. The highlighted row is the size selected under Configuration.
Operating range
Pressure and temperature limits with the saturated steam curve for reference. Enter your pressure to check your application.
Check your application
Enter your line saturated steam pressure. We calculate the saturation temperature and compare it with the operating area.
- Saturation temperature
- 364 °F · 184 °C
- Allowable pressure at that temperature
- 624 psig
- Lowest rating that works
- ANSI 150

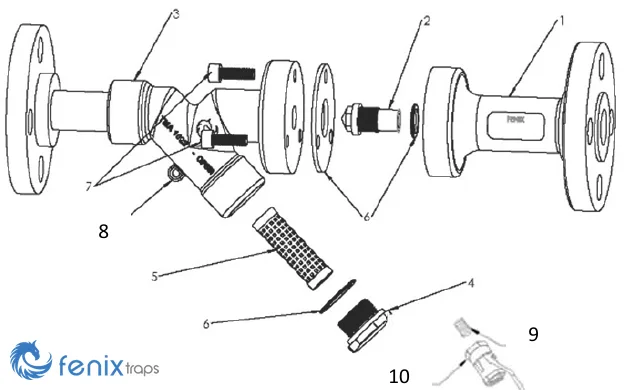

Components and materials
304L body, 316 nozzle and CF8M cast strainer.
| No. | Part | Material |
|---|---|---|
| 1 | Trap body | 304L stainless steel |
| 2 | Inlet removable nozzle | 316 stainless steel |
| 3 | Strainer | CF8M cast stainless steel |
| 4 | Strainer cap | 304L stainless steel |
| 5 | Strainer filter | 40 mesh stainless steel with 10 mesh reinforcement |
| 6 | Gaskets | Graphite with stainless steel reinforcement |
| 7 | Bolts | Carbon steel |
| 8 | Loop ¹ | — |
| 9 | Nipple ² | 304L stainless steel |
| 10 | Drain valve ² | 304L stainless steel |
¹ For an identification tag. ² Optional accessory for easy strainer cleaning, recommended up to 20 barg.
Spare parts
| Part | Code |
|---|---|
| Cap gasket | G-4 |
| Flange gasket | G-8 |
| Nozzle gasket | G-3 |
Frequently asked questions
What maintenance and engineering teams ask us most about the VFP trap.
What applications is the Fenix VFP steam trap designed for?
Process applications such as shell and tube heat exchangers, air heaters, calorifiers and cooking vessels, on flanged lines.
What is the maximum operating pressure of the VFP?
VFP: depends on the flange rating, from PN16 or ANSI 150 up to PN100 or ANSI 1500.
What sizes and connections does the VFP come in?
½" (DN15), ¾" (DN20), 1" (DN25). Connections: ANSI or PN flanges.
How is the VFP maintained?
The trap body can be removed for maintenance without removing the whole assembly from the pipework. The optional drain valve allows periodic strainer cleaning.
Can the VFP be made in a special length?
Yes. The standard length is 305 mm (12") and it can be made to measure up to 500 mm (20").
What warranty does the Fenix VFP trap have?
The Fenix VFP trap has a 15-year warranty. Its strainer, designed and made by Fenix, is also guaranteed for 15 years.
Why does the trap strainer matter?
Particles carried by the steam, such as rust, weld slag and scale, can block the nozzle. A robust, efficient strainer keeps the trap working properly. That is why Fenix designed and makes its own strainer and guarantees it for 15 years.
What is the drain valve for?
It is an optional accessory that allows easy strainer cleaning. When opened, line pressure blows out the sediment held in the screen without opening the cap. It is recommended for traps operating at no more than 20 barg.
What spare parts are available for the VFP?
Cap gasket (G-4), Flange gasket (G-8), Nozzle gasket (G-3).
Fenix strainer, designed and made by Fenix
A trap only works well if the condensate reaching it is clean. That is why Fenix designed and makes its own strainer, and guarantees it for 15 years, the same as the trap.
Protects the nozzle and venturis
Rust, weld slag and scale carried by the steam are among the most common causes of trap failure. The strainer holds them back before they reach the nozzle.
Robust by design
High integrity strainer: CF8M cast body and 40 mesh stainless steel screen with 10 mesh reinforcement. 304L stainless steel cap.
Cleaning without removing the trap
The screen comes out through its cap; the trap body stays installed in the line.
Optional drain valve
An accessory that allows easy strainer cleaning: when opened, line pressure blows out the sediment held in the screen without opening the cap. Recommended for traps operating at no more than 20 barg.
Trap and strainer from one maker
Both are designed and made by Fenix, and both carry a 15-year warranty. No generic third-party strainer.
- Screen
- 40 mesh stainless steel with 10 mesh reinforcement
- Body and cap
- CF8M cast · 304L cap
- Drain valve
- Optional (recommended up to 20 barg)
- Warranty
- 15 years, same as the trap
